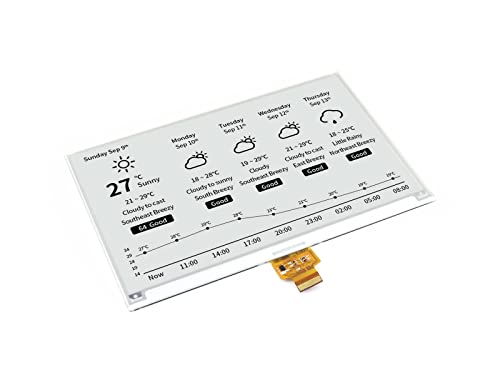

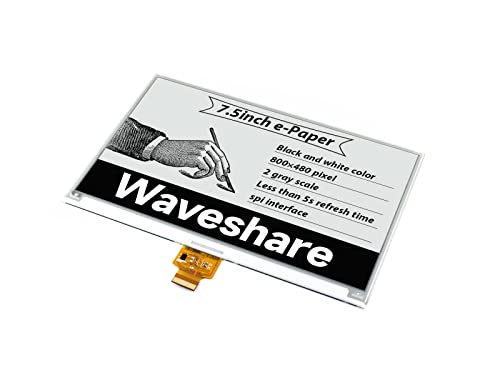

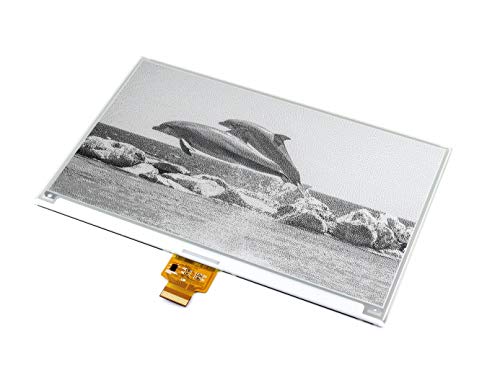

Waveshare 7.5 Inch E-Paper Raw Display Panel V2 800×480 Resolution 3.3V E-Ink Electronic Paper Screen Without PCB with…

• E-Ink raw display, 7.5inch, 800×480 resolution, with embedded controller, communicating via SPI interface.
• Due to the advantage like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

• Operating voltage: 3.3V
• Interface: 3-wire SPI, 4-wire SPI
• Outline dimension: 170.2mm × 111.2mm × 1.18mm
• Display size: 163.2mm × 97.92mm
• Dot pitch: 0.205 × 0.204
• Resolution: 800×480
• Display color: black, white
• Grey scale: 2
• Full refresh time: 5s
• Refresh power: 38mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170°

Revision History

• Revision V2 has been released on 2019.11, the resolution is upgraded to 800×480, from 640×384 of V1. The hardware and interface of V2 are compatible with V1, however, the related software should be updated.

Recommended

• To fastly get started with this raw display, please consider the following driver boards:
• e-Paper Driver HAT (Universal)
• e-Paper Shield (Arduino/NUCLEO)
• e-Paper ESP8266 Driver Board (WiFi)
• e-Paper ESP32 Driver Board (WiFi / Bluetooth)
• e-Paper NB-IoT/GPRS HAT (NB-IoT / eMTC / GPRS)

Package Content
7.5inch e-Paper x1

Note:Version 2 please use corresponding demo code in wiki.This is an E-Ink raw display, 7.5inch, 800×480 resolution, with embedded controller, communicating via SPI interface.Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Ultra low power consumption, basically power is only required for refreshing
Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
No backlight, keeps displaying last content for a long time even when power down，Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)
Note that you cannot use Partial refresh all the time, you should full refresh e-paper regularly, otherwise, ghost problem will get worse even damage.Please set the e-Paper to sleep mode or power off it directly, otherwise, the e-Paper is damaged because of working in high voltage for long time. You need to update the content of three-color e-Paper at least one time every 24h to avoid from burn-in problem.
